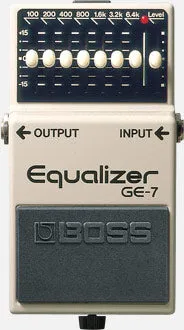

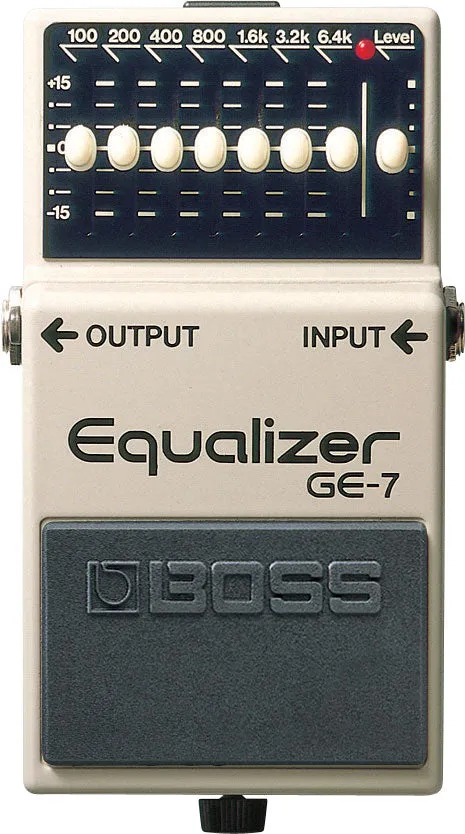

- Compact EQ pedal with 7 bands of adjustable EQ sliders
- Allows for boost/cut of up to /- 15dB per band
- Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
- BOSS five-year warranty
- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohm or greater
- Bypass
- Buffered bypass
- Controls
- Level Control knob
Equalizer Control knob
100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
Pedal switch - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack - Power Supply
- Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 30 mA
- Expected battery life under continuous use
- Carbon: Approx. 9 hours
Alkaline: Approx. 19.5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) - Options (sold separately)
- AC adaptor: PSA series
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 400 g
15 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
